Air Disc Brake Caliper Repair Kit
+90 332 251 47 70
Language
  • Product Code : CH5-002
  • Product Name : Caliper Guides & Seals Repair Kit
  • Product Size/Weight : 1,595 gr

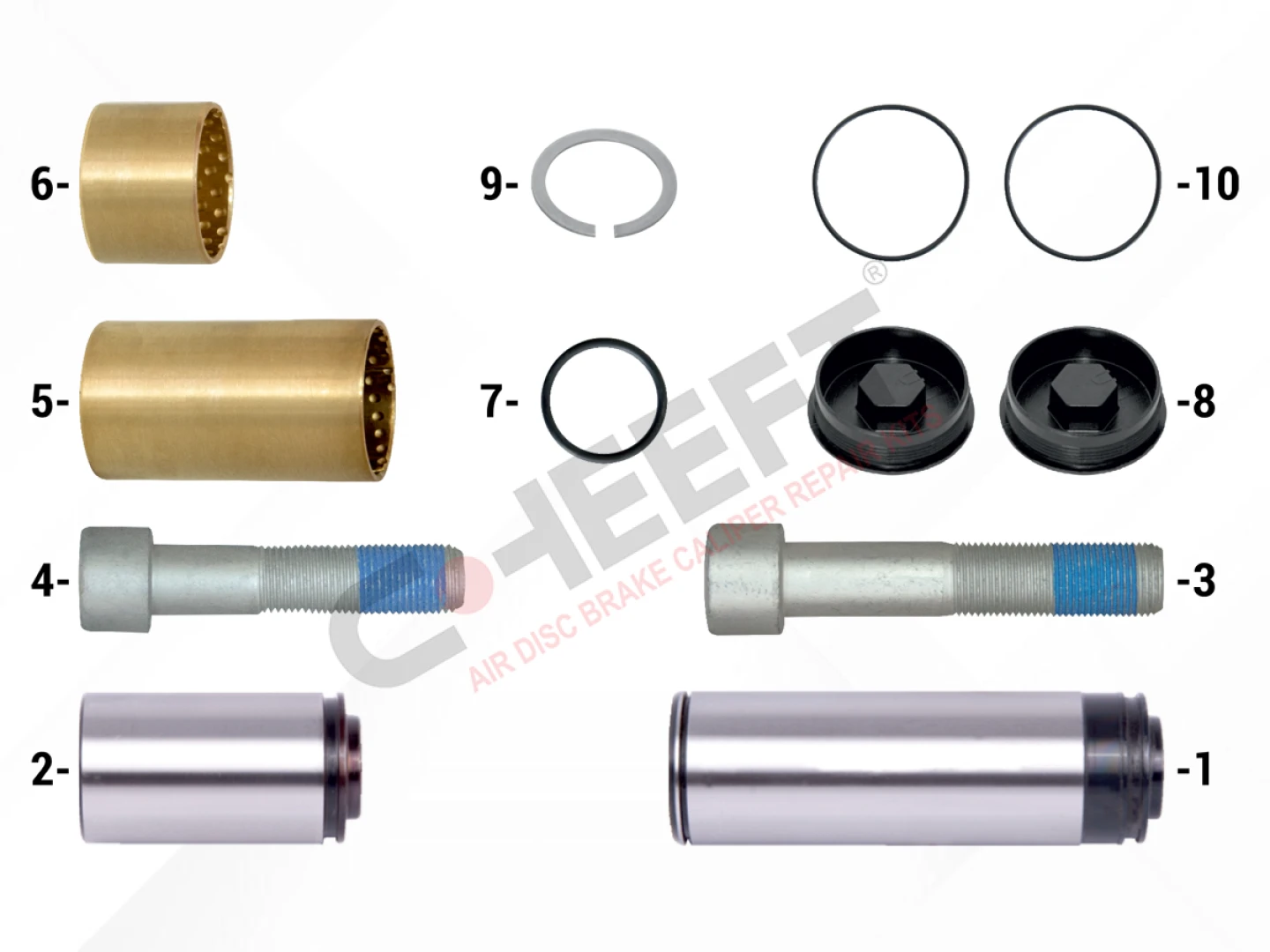

Contents

Order Image Code Name Size
1 Guide Pin Ø37 x 123 mm CH5-501 Guide Pin Ø37 x 123 mm 0,670 gr
2 Guide Pin Ø36,40 x 70 mm CH5-502 Guide Pin Ø36,40 x 70 mm 0,365 gr
3 Bolt M16 x 1,5 x 100 mm CH5-503 Bolt M16 x 1,5 x 100 mm 0,186 gr
4 Bolt M16 X 1,5 X 70 Mm CH1511 Bolt M16 X 1,5 X 70 Mm 0,140 gr
5 Bronze Bush Ø41 x Ø37 x 73 mm CH5-507 Bronze Bush Ø41 x Ø37 x 73 mm 0,145 gr
6 Bronze Bush Ø41 x Ø37 x 30 mm CH5-508 Bronze Bush Ø41 x Ø37 x 30 mm 0,060 gr
7 O-ring CH5-509 O-ring 0,002 gr
8 Plastic Cap CH5-510 Plastic Cap 0,010 gr
9 Pin Circlip Ø43 x 1,5 mm CH5-518 Pin Circlip Ø43 x 1,5 mm 0,005 gr
10 O-ring CH5-545 O-ring 0,001 gr

Note: Some sets may contain several of the related parts.

Ad Değer
B.V 09.801.07.61.0
